Air gap devices protect your drinking water by maintaining a visible gap that stops contaminated water from reaching your plumbing through backflow.
An air gap device creates a physical space between your water supply and potential contamination sources, serving as one of the most reliable methods to prevent dirty water from flowing back into your clean water system.
These simple yet effective devices play a crucial role in keeping water safe in homes and businesses.
Most people encounter air gap devices daily without realizing it. They appear in dishwashers, water softeners, and various plumbing fixtures throughout buildings. The concept relies on gravity and physics rather than moving parts, making these devices both dependable and low-maintenance.
Understanding how air gap devices work and where they belong in your plumbing system helps you maintain safe water quality. In this article, you’ll learn how air gap devices prevent backflow, protect potable water, and help you meet code with proper installation and maintenance.
Here’s what you need to know:
- What is an air gap device and how does it prevent backflow?
- Where air gap devices are used in plumbing systems
- How air gap devices compare to mechanical backflow preventers
- Common problems with air gap devices and how to fix them
- How professionals test and install air gap systems
Keep reading! This knowledge becomes especially important when comparing different backflow prevention methods, troubleshooting common issues, and ensuring proper installation and testing procedures.
What is an air gap device and how does it prevent backflow?
An air gap device creates a physical space between water supply outlets and potential contamination sources to stop dirty water from flowing backward into clean water systems. This simple yet effective method uses gravity and atmospheric pressure to maintain water safety without moving parts.
How air gaps create a physical barrier between clean and dirty water
An air gap works by maintaining an open vertical space between the water outlet and the flood level of any receiving container or drain. This gap must be at least twice the diameter of the water supply pipe.
According to the U.S. EPA’s Cross-Connection Control Manual (2003), an air gap must be “twice the supply pipe diameter but never less than one inch.
The physical separation ensures that contaminated water cannot reach the clean water source. Even if dirty water rises in a sink or drain, it cannot bridge the air space to contact the faucet or water line.
Key measurements for air gaps:
- Minimum gap = 2 times the pipe diameter
- For ½ inch pipes = 1 inch minimum gap
- For ¾ inch pipes = 1.5 inch minimum gap
Food service establishments rely heavily on air gaps at dishwashing stations and prep sinks. The gap prevents soapy water, food particles, and cleaning chemicals from entering the drinking water system.
Air gaps also protect against cross-connections in commercial buildings. They stop non-potable water from mixing with potable water supplies during pressure changes or system failures.
The science behind gravity-based backflow prevention
Air gaps use atmospheric pressure and gravity to prevent backflow without mechanical parts. When water flows from a faucet, it falls through the air gap and enters the drain system below.
Backflow happens when pressure in the supply line drops below the pressure in the drain system. This can occur during water main breaks, high-demand periods, or pump failures.
The air gap breaks the continuous path between the two water systems. Contaminated water cannot flow upward through air against gravity and atmospheric pressure.
Atmospheric pressure provides constant protection:
- Acts as a natural barrier 24/7
- No maintenance required
- Cannot fail like mechanical devices
Siphoning effects also cannot occur across an air gap. The physical break in the water path prevents vacuum conditions from pulling contaminated water backward into clean lines.
This gravity-based system works regardless of pressure changes in either the supply or drain lines. The air space maintains separation even during extreme pressure differences.
Why air gap systems are required by plumbing codes
Plumbing codes mandate air gaps in specific locations to protect public health. These requirements prevent contaminated water from entering municipal water supplies and causing widespread illness.
Common code requirements include:
- Kitchen sinks in commercial facilities
- Dishwasher connections
- Floor drains near water heaters
- Laboratory and medical equipment
Food establishments must install air gaps at every point where plumbing connects to drinking water systems. Health departments enforce these rules through regular inspections and permit requirements.
Air gaps receive preference over mechanical backflow devices in many codes. They provide the highest level of protection because they cannot malfunction or require testing like check valves or pressure reducers.
According to the U.S. EPA’s backflow prevention fact sheet, air gaps provide a physical separation, are the safest and simplest means under both backsiphonage and backpressure conditions, and are useful for all hazard levels.
Residential codes typically require air gaps for dishwashers and garbage disposals. Some areas also mandate them for washing machine connections and utility sinks.
Building inspectors verify proper air gap installation during construction and renovation projects. Incorrect installation can result in failed inspections and required corrections before occupancy permits are issued.
Where air gap devices are used in plumbing systems
Air gap devices serve as essential barriers in multiple plumbing applications, from kitchen sinks to large irrigation networks. These systems prevent contaminated water from flowing back into clean water supplies through strategic physical separations.
Common applications in sinks, dishwashers, and irrigation systems
Kitchen sinks rely on air gaps to protect the water supply when filling containers or washing dishes. The gap between the faucet and sink rim prevents dirty water from entering the clean water lines.
Dishwashers use air gaps as a standard safety feature. The device connects between the dishwasher drain hose and the garbage disposal or sink drain. This separation stops food particles and dirty water from backing up into the dishwasher.
Common dishwasher air gap locations:
- Mounted on the countertop near the sink
- Installed under the sink cabinet
- Built into the dishwasher drain connection
Irrigation systems need air gaps at multiple connection points. Sprinkler systems use these gaps where water lines connect to storage tanks. Garden hose connections also require gaps to prevent soil and fertilizer from contaminating drinking water.
Large irrigation networks install air gaps at pump stations and storage facilities. These prevent agricultural chemicals from entering municipal water supplies during system maintenance or pressure drops.
Why commercial and residential buildings both rely on air gaps
Food service establishments must install air gaps at every point where plumbing connects to drinking water systems. Restaurants use these devices at dishwashing stations, ice machines, and prep sink areas.
Health codes require air gaps in commercial kitchens because of the high risk of contamination. Grease, food particles, and cleaning chemicals pose serious threats to water safety.
Residential buildings need air gaps for similar protection on a smaller scale. Homes use these devices to protect families from water contamination prevention issues. The plumbing air gap system works the same way in both settings.
Key differences between commercial and residential use:
- Commercial buildings face stricter inspection requirements
- Residential systems typically have fewer connection points
- Both must meet local plumbing codes for air gap installation
Apartment buildings and condos often require air gaps in laundry rooms and utility areas. These protect multiple families from contamination risks.
How air gaps protect drinking water from cross-contamination
Air gaps create a physical barrier that contaminated water cannot cross. When water pressure drops in supply lines, the gap prevents dirty water from flowing backward through the system.
The vertical space between the water outlet and the drain opening must meet specific size requirements. Most codes require the gap to be at least twice the diameter of the supply pipe.
Gravity plays a key role in air gap protection. Contaminated water would need to flow upward against gravity to reach the clean water supply. This physical law makes air gaps nearly foolproof when properly installed.
Cross-contamination risks include bacteria, chemicals, and other harmful substances. Air gaps stop these contaminants from entering drinking water during:
- Power outages that affect water pressure
- System maintenance and repairs
- High-demand periods that reduce water flow
- Equipment malfunctions in connected appliances
The gap eliminates direct connection between clean and potentially dirty water sources. This separation provides constant protection without requiring electricity or moving parts.

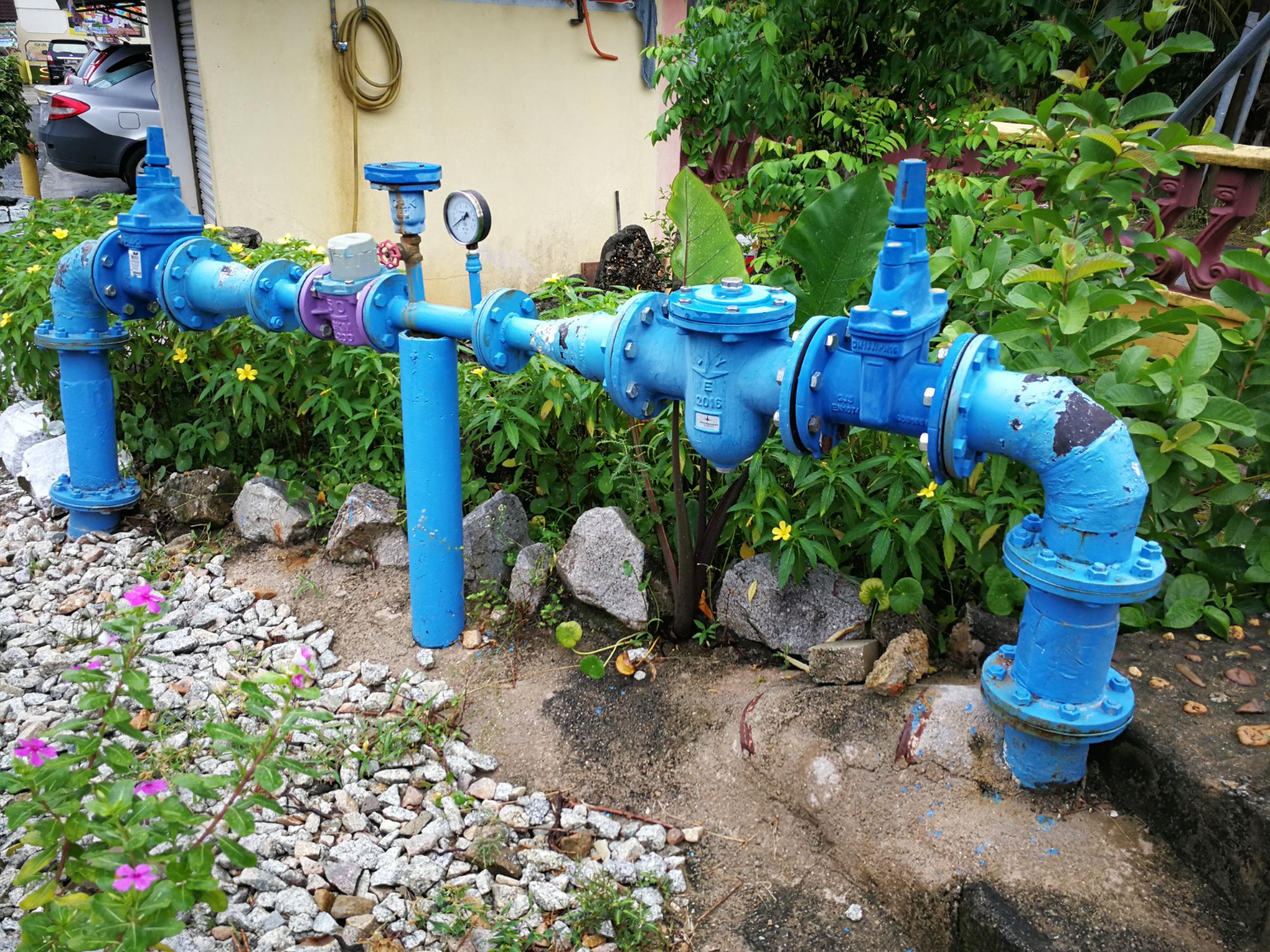

How air gap devices compare to mechanical backflow preventers
Air gaps work differently than mechanical devices by using physical space instead of valves or moving parts. Air gaps provide better reliability in many situations, while mechanical systems offer direct connections that maintain water pressure.
The key differences between air gaps and check valves
Air gaps create a physical break in the water line. Check valves use mechanical parts that open and close to stop reverse water flow.
Physical vs. Mechanical Operation
- Air gaps have no moving parts to break or wear out
- Check valves contain springs, discs, and seals that can fail
- Air gaps work by gravity and physics alone
Check valves allow direct connection between the water supply and the system. This keeps water pressure steady throughout the system. Air gaps break the connection completely, which drops water pressure after the gap.
Maintenance Requirements Air gaps need very little upkeep. Users only need to keep the gap clear of debris. Check valves require regular testing and replacement of worn parts.
Check valves can stick open or closed. When they fail, contaminated water can flow back into the clean supply. Air gaps cannot fail in this way because they have no mechanical parts.
Installation Flexibility Check valves fit inside existing pipes without major changes. Air gaps need space for the physical gap and often require tanks or reservoirs to collect water.
When an air gap is better than a reduced pressure zone (RPZ) device
RPZ devices use two check valves with a pressure zone between them. They work well but have more parts that can break down.
Air gaps work better in high-contamination areas. RPZ devices might not stop all backflow if both check valves fail at once. Air gaps provide complete protection because contaminated water cannot cross the physical space.
Pressure Loss Considerations RPZ devices cause some pressure loss but maintain flow. Air gaps cause complete pressure loss after the gap. This makes RPZ devices better for systems that need steady pressure.
Air gaps cost less to maintain over time. RPZ devices need annual testing by certified technicians. They also need part replacement every few years.
Environmental Conditions Air gaps work in all weather conditions. RPZ devices can freeze in cold weather, causing the valves to crack or stick. High temperatures can also damage the rubber seals inside RPZ devices.
Air gaps handle chemicals better than RPZ devices. Strong chemicals can damage the internal parts of RPZ systems. Air gaps have no parts that chemicals can harm.
Combining air gaps with other systems for layered protection
Many systems use both air gaps and mechanical devices for extra safety. This approach gives backup protection if one method fails.
Common Combination Setups
- Air gap at the final discharge point with check valves upstream
- RPZ device for pressure maintenance with air gap backup
- Multiple air gaps in series for high-risk applications
Industrial facilities often use this layered approach. They might have an RPZ device to keep pressure steady, then an air gap at the final outlet for complete protection.
When Dual Protection Makes Sense High-risk facilities like hospitals or food plants benefit from multiple protection methods. The cost of contamination is much higher than the cost of extra protection.
Some local codes require both types of protection. Water utilities may demand mechanical devices for system protection while health departments require air gaps at point of use.
System Design Considerations Engineers must plan for pressure drops when adding air gaps to mechanical systems. Storage tanks or booster pumps may be needed to maintain adequate pressure downstream of air gaps.
Common problems with air gap devices and how to fix them
Air gap devices can develop several issues that affect their performance. The most frequent problems include leaking water, bad smells, and device wear that requires replacement.
What causes air gap leaks or overflows
Clogged discharge hose is the main reason air gaps leak or overflow. Food particles and grease build up in the hose over time. This blocks water flow and forces water out through the air gap cap.
Blocked garbage disposal connection causes similar problems. Many new disposals have a plastic knockout plug that must be removed during installation. If this plug stays in place, water cannot drain properly.
Hard water mineral buildup creates blockages inside the air gap device. Calcium and lime deposits form on metal parts and narrow the water pathways.
Damaged or loose connections between the dishwasher, air gap, and disposal allow water to leak. Worn hose clamps or cracked hoses create weak spots where water escapes.
To fix these issues:
- Remove the air gap cap and clean out debris
- Check that the disposal knockout plug is removed
- Run hot water through the system to clear minor clogs
- Replace damaged hoses or tighten loose connections
How to clean and maintain your air gap to prevent odors
Regular cleaning prevents most odor problems with air gap devices. Food particles that get stuck inside start to rot and smell bad.
Remove the air gap cap by lifting it straight up. Most caps twist off easily. Clean the cap and internal parts with warm soapy water to remove grease and debris.
Use a small brush or cloth to scrub away buildup. An old toothbrush works well for tight spaces. Rinse all parts with clean water before putting them back.
Monthly maintenance keeps the air gap working properly. Pour hot water down the air gap opening to flush out small particles. This simple step prevents bigger clogs from forming.
Check the area around the air gap for water stains or mineral deposits. Wipe down the outside with a damp cloth. Replace the rubber gasket if it looks cracked or worn.
When It's Time to Replace a Worn or Damaged Air Gap Device
Corrosion damage means the air gap needs replacement. Hard water areas see more metal corrosion over time. Look for rust spots or white mineral buildup that will not clean off.
Cracked or broken parts cannot be repaired safely. If the air gap body has cracks or the cap does not fit tightly, water can leak in wrong places.
Persistent leaking after cleaning and repairs shows the device has failed. When water keeps coming out of the air gap despite fixing clogs, the internal parts may be damaged.
Age of the device matters for replacement decisions. Air gaps that are over 10 years old often have worn seals and metal parts that work poorly.
New air gap installation takes about 30 minutes with basic tools. Turn off the dishwasher and disconnect the hoses. Remove the old device and install the new one using the same connections.
How professionals test and install air gap systems
Professional installation requires precise measurements and strict adherence to plumbing codes. Certified technicians follow specific testing protocols to ensure these systems prevent contamination effectively.
Why correct spacing and positioning are crucial
The air gap distance determines how well the system prevents backflow. Most codes require a minimum separation of two times the pipe diameter between the water outlet and the flood rim.
For a standard 1-inch pipe, professionals maintain at least a 2-inch vertical gap. This spacing prevents contaminated water from reaching the clean water supply during backflow events.
Positioning requirements include:
- Mount the outlet above the highest possible water level
- Keep the gap free from obstructions
- Install away from areas where debris might collect
Incorrect spacing allows contamination to bridge the gap. Water can splash or flow back into the potable water system if the distance is too small.
Temperature and pressure changes affect how water moves through the system. Professionals account for these factors when determining the exact placement of air gap components.
Steps experts take to ensure code compliance
Licensed plumbers start by reviewing local plumbing codes before installation. These codes vary by location and specify minimum distances, materials, and installation methods.
The inspection process includes measuring all gap distances with precision tools. Technicians verify that drain lines slope correctly toward the disposal point.
Key compliance steps:
- Check pipe materials meet local standards
- Verify proper venting for drainage systems
- Test water pressure at different flow rates
- Document all measurements for permit approval
Professionals install the system according to manufacturer specifications. They ensure all connections are secure and properly sealed to prevent leaks.
The final step involves pressure testing the entire system. This test confirms that water flows correctly and that no backflow occurs under normal operating conditions.
The Importance of Certified Inspection and Testing Services
Certified inspectors use specialized equipment to test air gap effectiveness. They check for proper water flow patterns and measure actual gap distances under operating conditions.
Professional testing includes backsiphonage tests that simulate real-world backflow scenarios. Inspectors create negative pressure conditions to verify the air gap prevents contamination.
Regular maintenance inspections catch problems early. Debris buildup or pipe settling can reduce gap distances over time.
Testing frequency requirements:
- Initial installation inspection
- Annual compliance checks
- After any system modifications
- Following major plumbing repairs
Certified services provide documentation needed for insurance and regulatory compliance. This paperwork proves the system meets all safety standards and local codes.
Professional testing equipment measures water pressure, flow rates, and gap distances more accurately than basic tools. This precision ensures the air gap system will protect water quality effectively.
Conclusion
Air gap devices represent the simplest and most reliable method for preventing backflow in plumbing systems. They use gravity and physical space to create an effective barrier between clean and contaminated water.
Unlike mechanical devices, air gaps have no moving parts that can break or fail. This makes them extremely dependable for long-term protection.
Installation requirements vary by location. Local plumbing codes determine the specific standards that must be followed.
Air gaps protect water supply integrity through a physical separation. This barrier prevents contaminated water from entering clean water systems under any pressure conditions.
The technology requires minimal maintenance once properly installed. Property owners can rely on air gaps to function continuously without regular inspections or replacements.
Both direct and indirect air gap solutions are available. Direct air gaps create visible space between water sources. Indirect systems use specialized fittings to achieve the same protection.
Air gap devices serve as a critical component in comprehensive backflow prevention strategies. They offer peace of mind for homeowners and businesses concerned about water safety.
The effectiveness of air gaps makes them a preferred choice among plumbing professionals. Their simple design eliminates the complexity and potential failure points of other backflow prevention methods.
